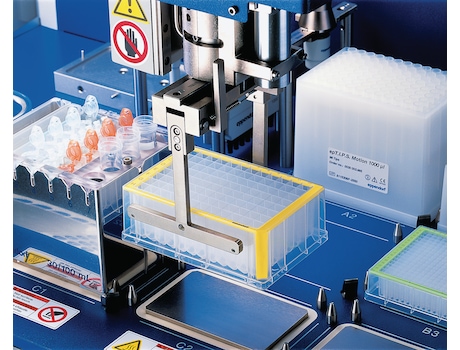

Image – DWP with gripper

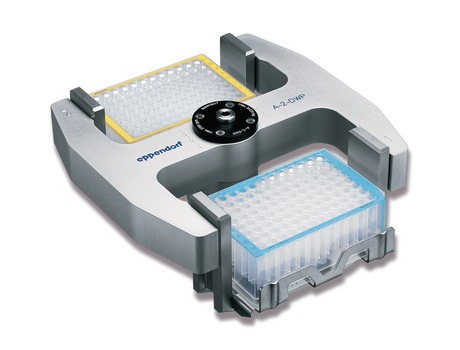

Image – DWP with rotor A-2-DWP
Image – DWP group detail
Image – DWP green_detail_2
Image – DWP green,white
Image – DWP upturned detail
Image – DWP 96x1000µl Protein LoBind white_barcode

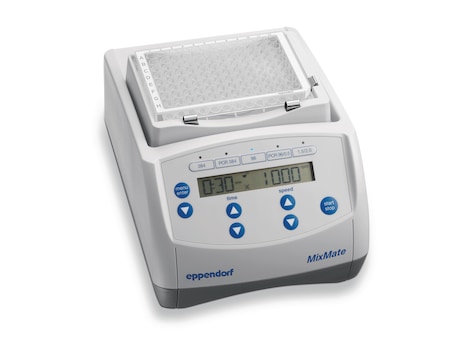

Image – MixMate

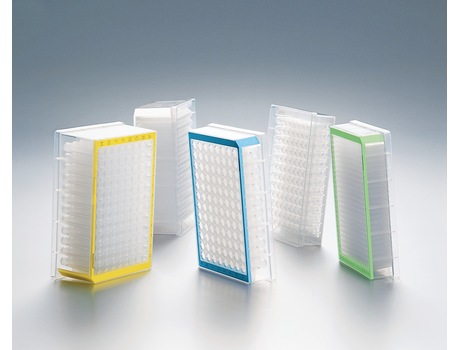

Image – DWP family, color variants
Image – Deepwell Plates
Image – DWP with gripper
Image – DWP with rotor A-2-DWP
Image – DWP group detail
Image – DWP green_detail_2
Image – DWP green,white
Image – DWP upturned detail
Image – DWP 96x1000µl Protein LoBind white_barcode
Image – MixMate
Image – DWP family, color variants
Eppendorf Deepwell Plates

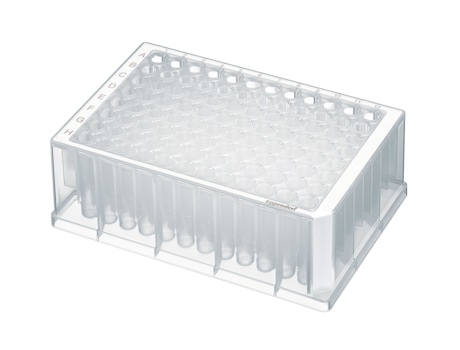

Eppendorf Deepwell Plates 96 and 384 are high performance plates fulfilling highest requirements of all manual and automated applications. They combine innovative features, like the OptiTrack® matrix, with thoroughgoing quality for which Eppendorf consumables are globally known as a premium standard. More information

Order Info
show more (31)

Product Information

Eppendorf Deepwell Plates 96 and 384 are high-performance plates for all manual and automated applications – from sample storage at -86 ºC to DNA denaturation at 100 ºC. Manufactured from pure polypropylene (PP), these plates offer innovative features: More dependability. More efficiency. More stability. The plates are available with a white, yellow, green, or blue border. For easy identification of wells, a high-contrast alphanumeric label is laser-engraved in the border. This OptiTrack® matrix allows you to find your sample up to 30 % more quickly while reducing pipetting errors. With all of these sophisticated features, these plates set new standards in your laboratory.

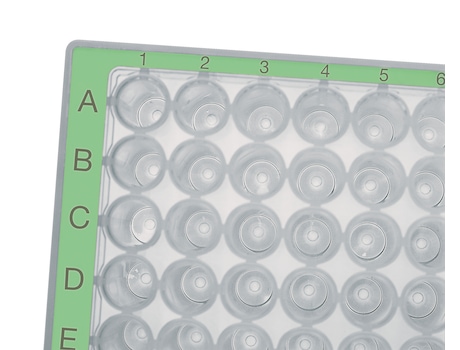

OptiTrack® well labeling


Our unique and easy to recognize OptiTrack® labeling represents only one of the innovative features of Eppendorf Deepwell and Microplates. The Deepwell Plates are available with white, yellow, green or blue borders with laser–inscribed, high–contrast alphanumeric labeling to easily identify wells. This reduces pipetting errors up to 30 % and makes everyday work simpler and faster. For more information see Application Note 202: Eppendorf Polypropylene Microplates – Fast and secure identification of samples.

Eppendorf Deepwell Plates

RecoverMax® well design


Optimized well geometry for maximum sample recovery and excellent mixing/resuspension properties. The rounded and smoothed design of well corners prevent sample loss and minimize the residual volume. In square-well plates, the smooth contours also reduce capillary effects in well corners ("wicking") thus minimizing the risk of cross-contamination. For more information see Application Note 145: Eppendorf Plate® Deepwell 96 and 384: RecoverMax®. And also Application Note: Eppendorf Deepwell Plate: Determination of residual volumes during use with the automated pipetting system Eppendorf epMotion®.

Eppendorf Deepwell Plates

Wide variety in line with high robustness and precision for all your application needs:


› Come in 96 and 384 well formats.
› Volumes of 200, 500, 1000 and 2000 µL.
› Eppendorf PCR clean and Sterile purity grades.

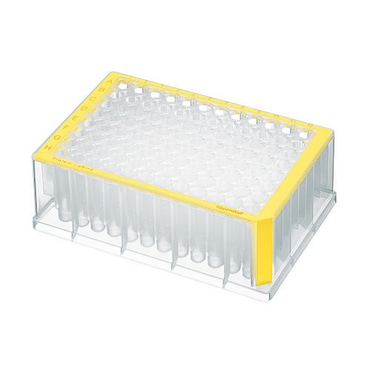

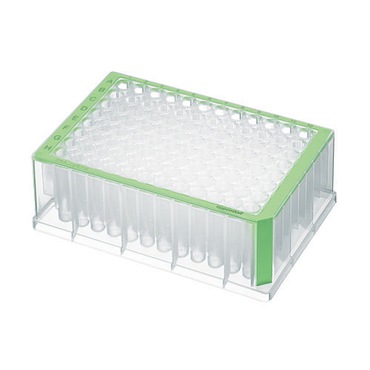

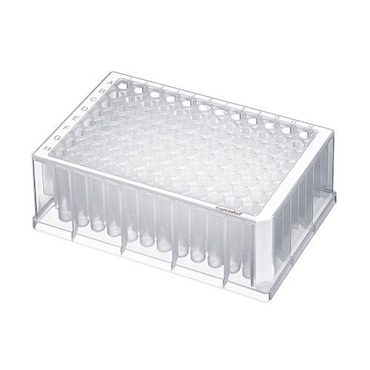

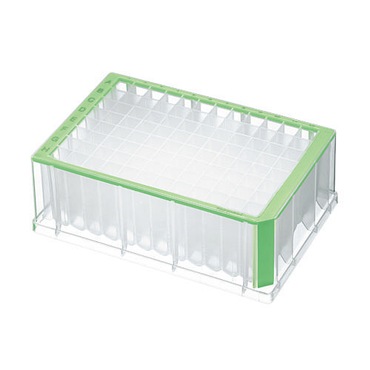

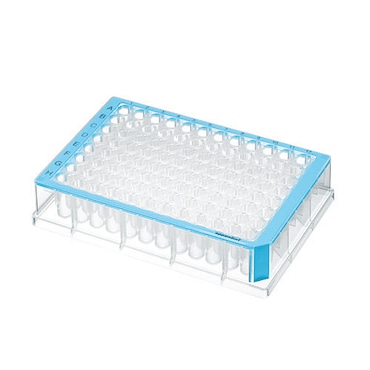

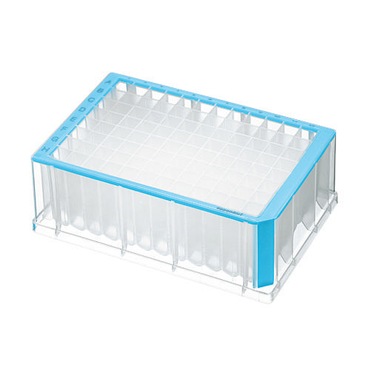

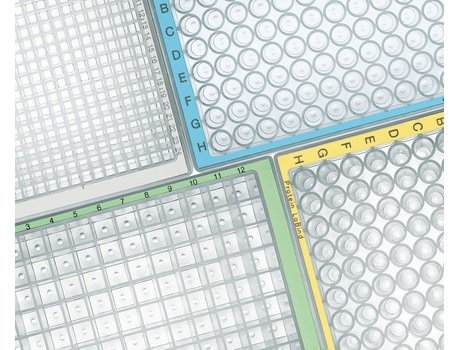

› Yellow, Blue, Green, and White frames are available.
› Also available as DNA and Protein LoBind.
› g–Safe®: exceptional centrifugation stability up to 6,000 x g for faster protocols and improved sample quality.
› Raised well rims and smooth surface for reliable closing, even with heat sealing.
› High-quality polypropylene guarantees high resistance to chemicals, mechanical stress and temperature extremes.
› Autoclavable (121 °C, 20 min).
› Manufactured without demoulding aids, softeners or biocides
› Materials which could have a negative effect on bioassays.
For more information see Application Note 56: The best material for original Eppendorf Tubes® and Plates: Properties and chemical resistance of polypropylene. Application Note 146: Eppendorf Plate® Deepwell 96 and 384: g–Safe®.

Eppendorf Deepwell Plates

Features

  • OptiTrack® matrix: up to 30 % faster sample identification and fewer pipetting errors via high-contrast alphanumeric labeling
  • RecoverMax® well design: Optimized well geometry for maximum sample recovery and excellent mixing properties
  • Minimized remaining volume and high uniformity from well to well
  • Raised well rims and smooth surface for reliable closing, even with heat sealing
  • Easy and reliable stacking
  • g-Safe®: exceptional centrifugation stability up to 6,000 × g for faster protocols and improved sample quality
  • High-quality polypropylene ensures high resistance to chemicals, mechanical stress and temperature extremes
  • Manufactured without slip agents, plasticizers, and biocides – Materials which could have a negative effect on bioassays
  • Autoclavable (121 °C, 20 min)

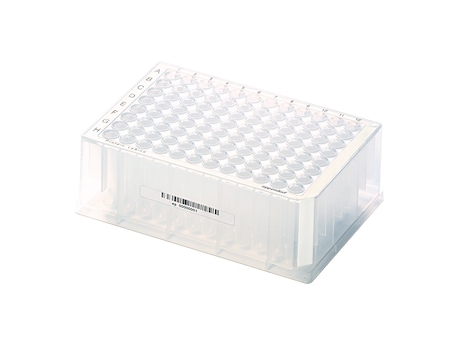

  • Available with barcode. Additional details available at: www.eppendorf.com/barcode

Applications

  • Sample storage and preparation
  • Bacteria and yeast cultivation
  • DNA and RNA isolation with high throughput
  • Storage of cDNA or genomic banks
  • Storage of siRNA or oligonucleotide libraries
  • Protein analysis
  • Storage of valuable protein and DNA samples in Eppendorf LoBind plates
  • Plasmid purification with high throughput
  • Creating dilution series
 DWP 96/500DWP 96/500DWP 96/500DWP 96/500DWP 96/1000DWP 96/1000DWP 96/1000DWP 96/1000DWP 96/2000DWP 96/2000DWP 96/2000DWP 96/2000DWP 96/500DWP 96/500DWP 96/500DWP 96/500DWP 96/1000DWP 96/1000DWP 96/1000DWP 96/1000DWP 96/2000DWP 96/2000DWP 96/2000DWP 96/2000DWP 96/500DWP 96/1000DWP 96/2000DWP 96/500DWP 96/1000DWP 96/2000DWP 384/200DWP 384/200DWP 384/200DWP 384/200
Bottom shapeconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconicalconical
Materialpolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylenepolypropylene
Max. RCF6000 × g6000 × g6000 × g6000 × g6000 × g6000 × g6000 × g6000 × g6000 × g6000 × g6000 × g6000 × g5000 × g5000 × g5000 × g5000 × g5000 × g5000 × g5000 × g5000 × g5000 × g5000 × g5000 × g5000 × g6000 × g6000 × g6000 × g5000 × g5000 × g5000 × g6000 × g5000 × g6000 × g5000 × g
Number of wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells96 wells384 wells384 wells384 wells384 wells
OptiTrack® frame colorwhiteyellowgreenbluewhiteyellowgreenbluewhiteyellowgreenbluewhiteyellowgreenbluewhiteyellowgreenbluewhiteyellowgreenbluewhitewhitewhitewhitewhitewhitewhitewhitewhitewhite
Packing40 plates (5 bags × 8 plates)40 plates (5 bags × 8 plates)40 plates (5 bags × 8 plates)40 plates (5 bags × 8 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)40 plates (5 bags × 8 plates)40 plates (5 bags × 8 plates)40 plates (5 bags × 8 plates)40 plates (5 bags × 8 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)20 plates (5 bags × 4 plates)120 plates (10 bags × 12 plates)80 plates (10 bags × 8 plates)80 plates (10 bags × 8 plates)120 plates (10 bags × 12 plates)80 plates (10 bags × 8 plates)80 plates (10 bags × 8 plates)40 plates (5 bags × 8 plates)40 plates (5 bags × 8 plates)120 plates (10 bags × 12 plates)120 plates (10 bags × 12 plates)
Purity grade(s)PCR cleanPCR cleanPCR cleanPCR cleanPCR cleanPCR cleanPCR cleanPCR cleanPCR cleanPCR cleanPCR cleanPCR cleanSterileSterileSterileSterileSterileSterileSterileSterileSterileSterileSterileSterilePCR cleanPCR cleanPCR cleanSterileSterileSterilePCR cleanSterilePCR cleanSterile
Total volume per well700 µL700 µL700 µL700 µL1200 µL1200 µL1200 µL1200 µL2400 µL2400 µL2400 µL2400 µL700 µL700 µL700 µL700 µL1200 µL1200 µL1200 µL1200 µL2400 µL2400 µL2400 µL2400 µL700 µL1200 µL2400 µL700 µL1200 µL2400 µL240 µL240 µL240 µL240 µL
Volume500 µL500 µL500 µL500 µL1000 µL1000 µL1000 µL1000 µL2000 µL2000 µL2000 µL2000 µL500 µL500 µL500 µL500 µL1000 µL1000 µL1000 µL1000 µL2000 µL2000 µL2000 µL2000 µL500 µL1000 µL2000 µL500 µL1000 µL2000 µL200 µL200 µL200 µL200 µL
Well colorclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclearclear
Well shapeV-shapedV-shapedV-shapedV-shapedRounded edgesRounded edgesRounded edgesRounded edgesV-shapedV-shapedV-shapedV-shapedRounded edgesRounded edgesRounded edgesRounded edgesV-shapedRounded edgesV-shapedRounded edgesRounded edgesRounded edgesRounded edgesRounded edges
Working volume per well30 – 550 µL30 – 550 µL30 – 550 µL30 – 550 µL30 – 1.000 µL30 – 1 000 µL30 – 1 000 µL30 – 1 000 µL50 – 2.000 µL50 – 2 000 µL50 – 2 000 µL50 – 2 000 µL30 – 550 µL30 – 550 µL30 – 550 µL30 – 550 µL30 – 1 000 µL30 – 1 000 µL30 – 1 000 µL30 – 1 000 µL50 – 2 000 µL50 – 2 000 µL50 – 2 000 µL50 – 2 000 µL30 – 550 µL30 – 1 000 µL50 – 2 000 µL30 – 550 µL30 – 1 000 µL50 – 2 000 µL20 – 225 µL20 – 225 µL20 – 225 µL20 – 225 µL
Dimensions (W × D × H)127,8 × 85,5 × 27,1 mm127,8 × 85,5 × 27,1 mm127,8 × 85,5 × 27,1 mm127,8 × 85,5 × 27,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 27,1 mm127,8 × 85,5 × 27,1 mm127,8 × 85,5 × 27,1 mm127,8 × 85,5 × 27,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 27,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 27,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 44,1 mm127,8 × 85,5 × 25,1 mm127,8 × 85,5 × 25,1 mm127,8 × 85,5 × 25,1 mm127,8 × 85,5 × 25,1 mm
Working volume30 – 550 µL30 – 550 µL30 – 550 µL30 – 550 µL30 – 1,000 µL30 – 1,000 µL30 – 1,000 µL30 – 1,000 µL50 – 2,000 µL50 – 2,000 µL50 – 2,000 µL50 – 2,000 µL30 – 550 µL30 – 550 µL30 – 550 µL30 – 550 µL30 – 1,000 µL30 – 1,000 µL30 – 1,000 µL30 – 1,000 µL50 – 2,000 µL50 – 2,000 µL50 – 2,000 µL50 – 2,000 µL30 – 550 µL30 – 1,000 µL50 – 2,000 µL30 – 550 µL30 – 1,000 µL50 – 2,000 µL20 – 225 µL20 – 225 µL20 – 225 µL20 – 225 µL
